Omron LUNA88K

» Overview
» Operating Systems
» Pictures
» References

Overview

Omron sold a line of m88k-based workstations on which the MACH operating system ran on, which includes the CMU's original m88k-port and Omron's own MACH-based UniOS. These computers were distributed almost exclusively in Japan and are very hard to come by. The LUNA88K was Omron's original m88k-based offering after which the sucessor LUNA88K² came.

LUNA88K

Two available models: DT8840 and DT8860
SMP-capable
1-4 25MHz 88100 CPUs
2 88200 CMMUs per CPU
16KB/16KB external I/D L1 cache
16MB RAM on DT8840
32/64MB RAM on DT8860
Expansion via one NEC PC-98 slot
Storage-I/O: MB89352 SCSI controller
Ethernet: 10Mb/s AMD LANCE interface
External ports: two RS232C, Floppy, SCSI, parallel, Ethernet (AUI/BNC), keyboard/mouse
Optional bitmap board: 2048x1024px, either 1 or 4-plane

LUNA88K²

DT9581
SMP-capable
1-4 33MHz 88100 CPUs
2 88200 CMMUs per CPU
16KB/16KB external I/D L1 cache
112MB RAM maximum
Expansion via two NEC PC-98 slot
Storage-I/O: MB89352 SCSI controller
Ethernet: 10Mb/s AMD LANCE interface
External ports: three RS232C, Floppy, SCSI, parallel, Ethernet (AUI/BNC), keyboard/mouse, optional second Ethernet interface, optional GPIB interface
Optional bitmap board: 2048x1024px, either 1, 4 or 8-plane

Operating Systems

CMU MACH 2.5
Omron UniOS
OpenBSD/luna88k

Pictures:

LUNA88K photos:

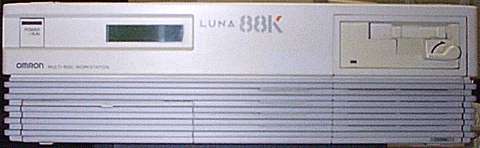

- front (G model)

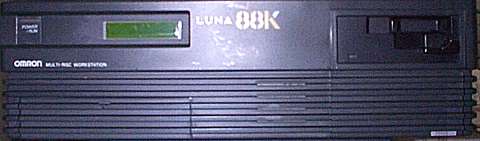

- front

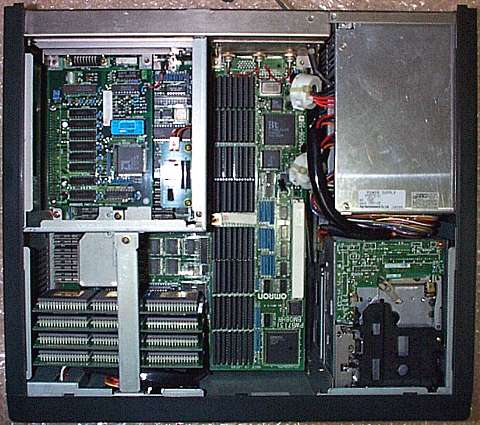

- inside

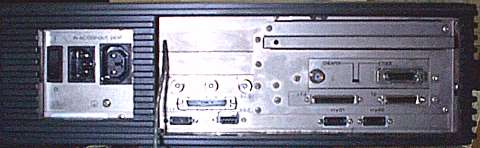

- back

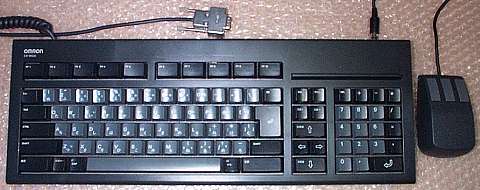

- keyboard/mouse
- logo

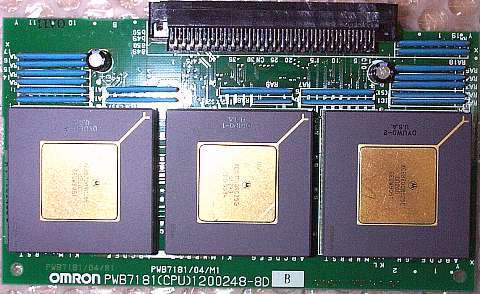

- cpu module

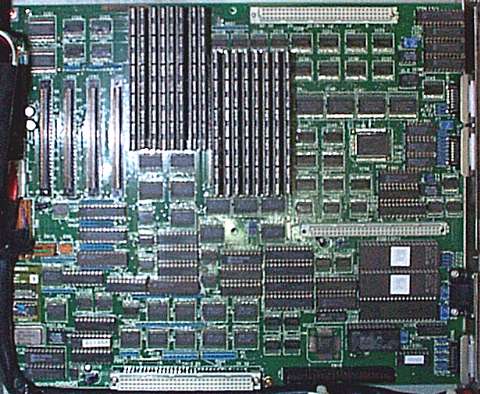

- mainboard

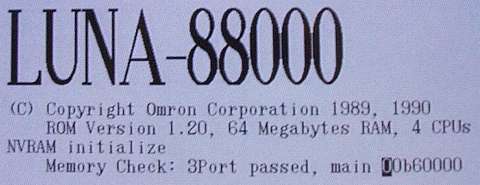

- boot screen

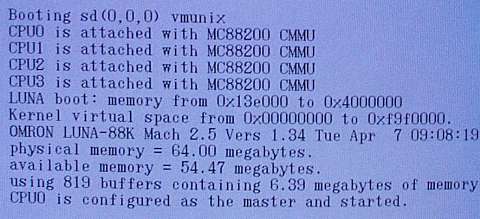

- mach startup
(with permission from/Copyright Yukio Igarashi).

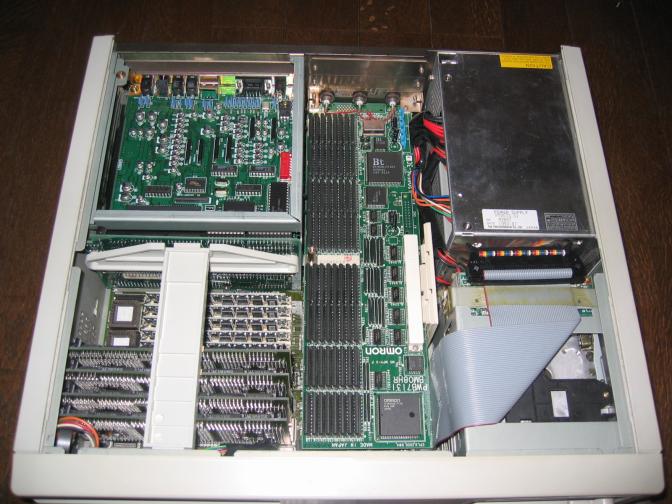

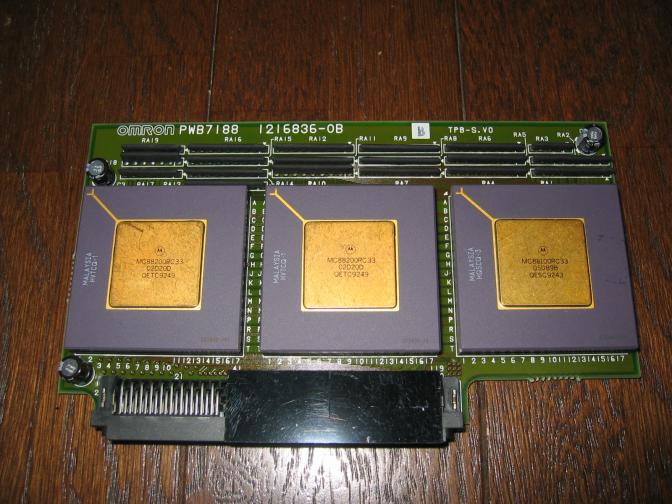

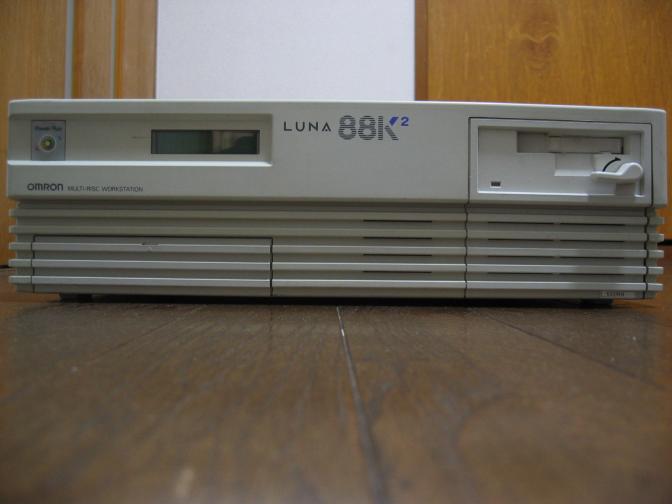

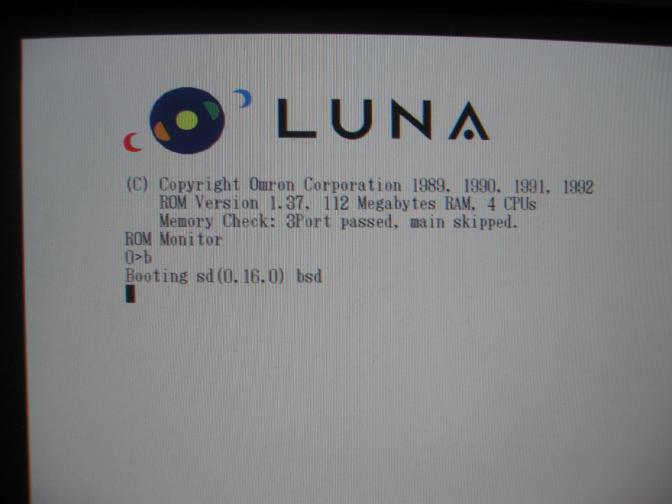

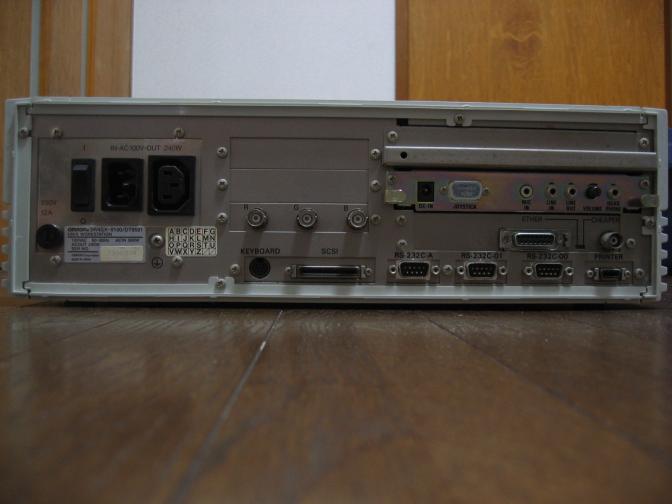

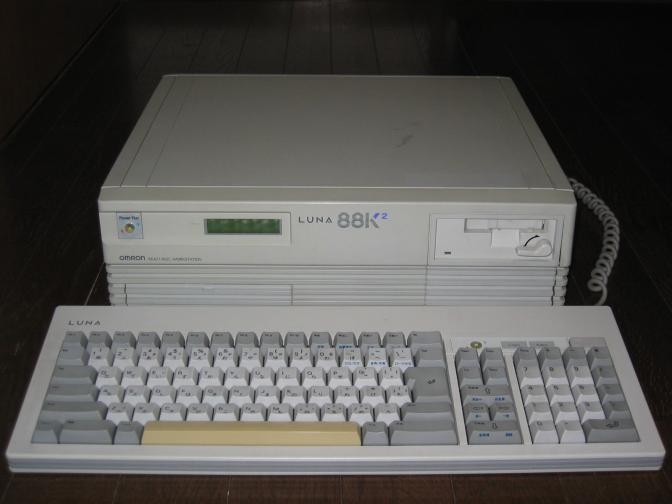

LUNA88K² photos:
(with permission from/Copyright Kenji Aoyama).
